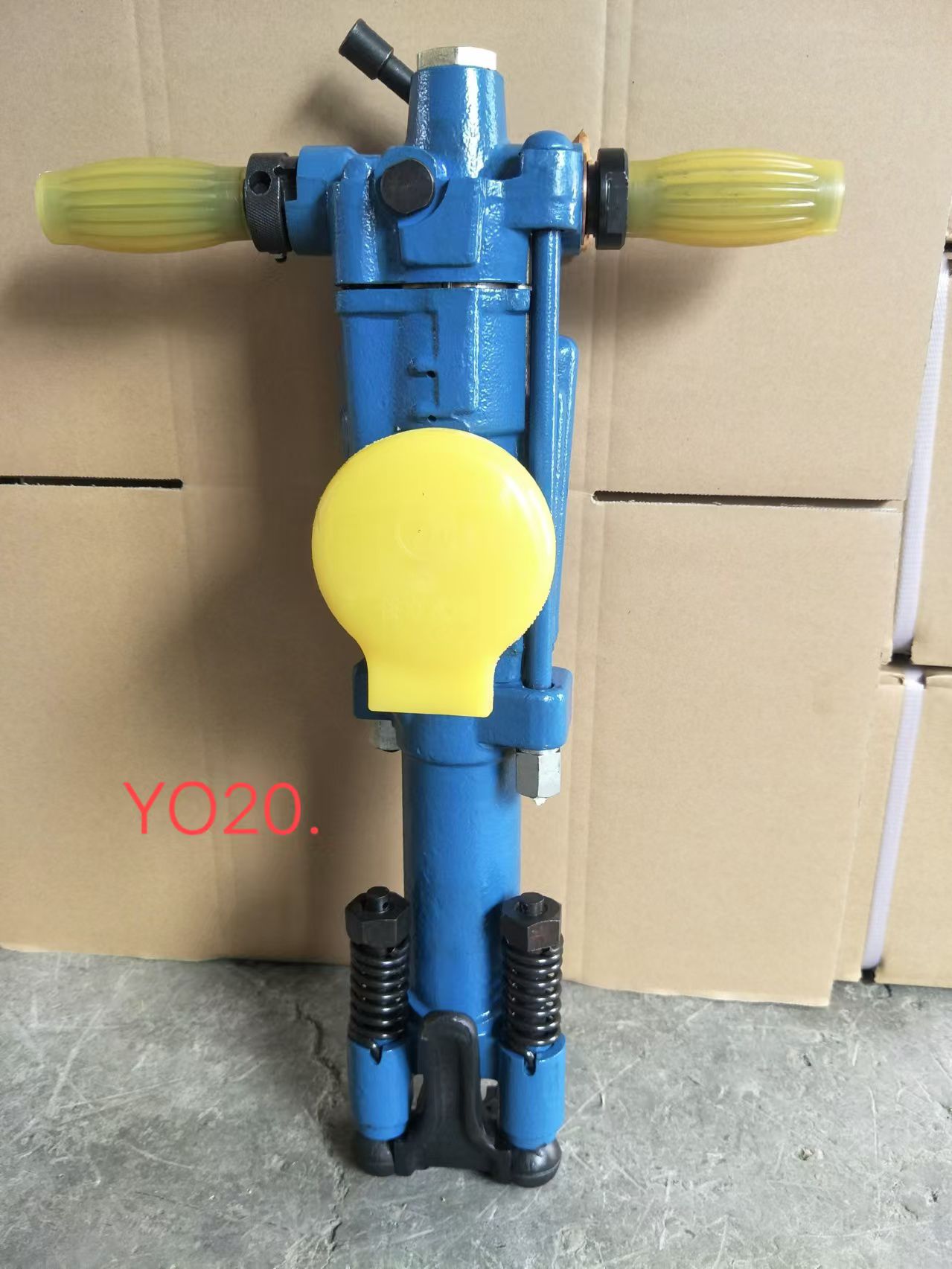

YO20 Air Leg Rock Drill Pneumatic Rotary Hammer

The YO20 rock drill machine is a kind of high efficiency hand held or air leg support rock drill machinery.
Price: $ 205
Availability:
Quantity:

  • YO20

  • Jinquan

  • 84671900

YO20 pneumatic rock driller jack hammers are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. Rock Drill Jack Hammer is suitable for wet or dry drilling in all kinds of rocks. The jack hammer driller is hand held type for perpedicular and air leg type titling direction.


Advantages: light weight and convenient operation, low consumption and long lift parts, high efficiency and fast drilling volcocity.



Item No.HY18YO18Y19AYO20YT24
Rock HardnessF=6-20F=6-20F=6-20F=6-20F=6-20
Piston Stroke50mm50mm54mm52mm64mm
Cylinder Diameter58mm58mm65mm64mm70mm
Working pressure0.4mpa0.4mpa0.4-0.5mpa0.4mpa0.5mpa
Air Consumption1.4m³/min1.4m³/min2.2-2.58m³/min1.7m³/min2.6m³/min
Drill Pipe SizeB22*108mmB22*108mmB22*108mmB22*108mmB22*108mm
Weight18kg21kg19kg21kg27kg
Package size(mm)590*280*180590*280*180600*534*106590*280*180740*310*220

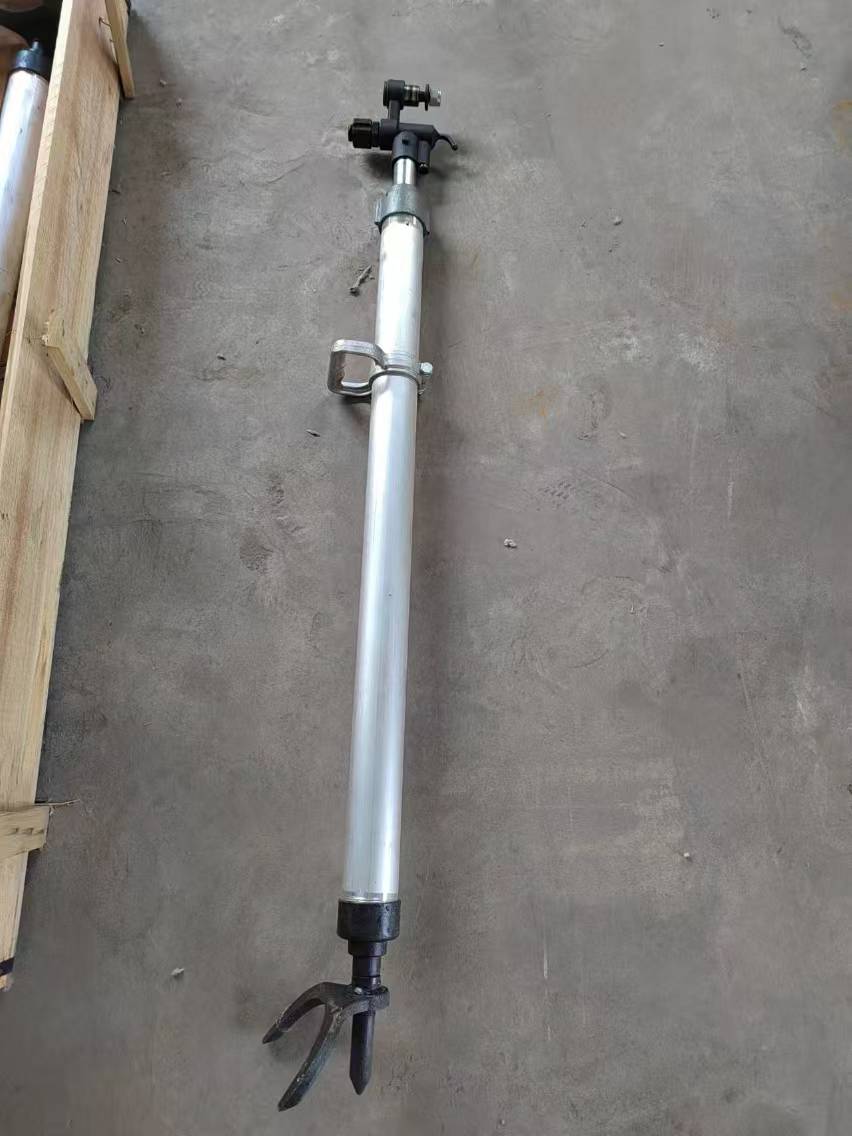

Optional of pneumatic air leg rock hammer drillFT100FT100FT100FT100FT140
